3V 150mA 0.5W SMD 5730 LED MLT-SMD-5730-03150DXX
![smd_led_5730 SMD LED 5730](https://www.led-moonlight.com/wp-content/uploads/smd_led_5730.jpg)
Brief Introduction
5730 LED manufacturer and supplier Moonlight SMD 5730 LED is a collection of compact devices, 5.7mm*3.0mm, that allows for design freedom and provides a superior overall system solution when a project requires high flux output and good efficacy. The Moonlight 5730 SMD LED is color targeted for application needs and delivers efficiency and reliability for a variety of applications.
The SMD LED Module (surface-mount device light-emitting diode module) is a type of LED module that uses surface-mount technology (SMT) to mount LED chips on printed circuit boards (PCB). It is a self-contained surface-mount LED device designed either to function on its own or to plug into a compatible unit. The types of SMD LED Modules are distinguished by the dimensions of the LED package. The package dimension of SMD LED 5730 is 5.7mm*3.0mm.
Data Sheet
Feature
- Compact package size at 5.7mm*3.0mm.
- Various configurations of different voltage and die count to meet a wide range of application requirements.
- Deliver high efficacy and quality of light for distributed light source.
- Excellent color Reproduction.
- Available in a broad range of CCTs from 2600K to 6700K.
- RoHS complaint.
- Low thermal resistance.
- Environment-friendly.
- Long life span and high reliability.

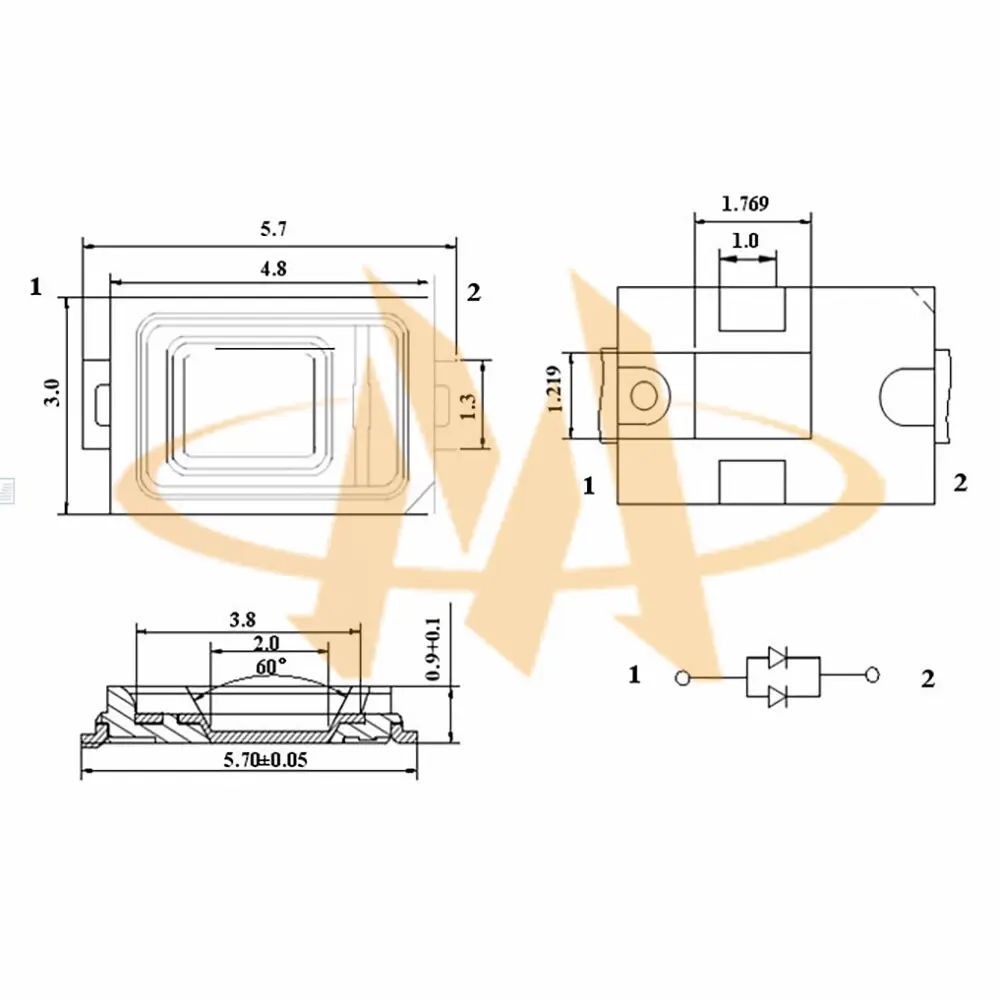

Mechanical Dimensions
![smd_led_5730_mechanical_dimensions SMD LED 5730 Mechanical Dimensions](https://www.led-moonlight.com/wp-content/uploads/smd_led_5730_mechanical_dimensions.jpg)
Parameter
Model No. | SMD LED MLT-SMD-5730-03150DXX |
LED Package | 5.7mm*3.0mm |
Typical Forward Voltage | 3V |
DC Forward Current | 150mA |
Typical Power Dissipation | 0.5W |
Typical Luminous Flux | 65lm-75lm |
CRI | >80Ra |
CCT Range | 2600K-6700K |
Emitting Color | Warm White/Neutral White/Cool White |
Viewing angle | 120° |
Operating Temperature | -40℃~+85℃ |
Storage Temperature | -40℃~+100℃ |
Application
Moonlight advanced packaging technology and spectrum tuning technology creates emphasis on the appearance of lighting. It is suitable for commercial lighting and LED outdoor lighting, such as LED bulb, LED spot lights, LED downlight, LED track light, LED floodlight, LED high bay light, LED wall pack light, LED street light, etc. It is also widely used as backlight, traffic light, LED display and other electric products.
